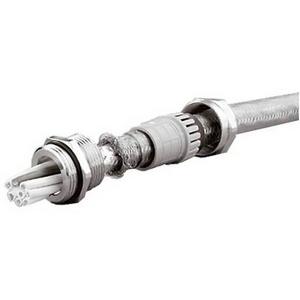

CABLE GLAND SHIELDED LONG LONG METAL 19-28MM CABLE OD 40MM THREAD
Lear & Smith Part:
CABGU40EMC/L
Mfr Number:
GU40EMC/L
Barcode:
9318674627524
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
Supplier Packages :
Package options may not always be available
Package Options
Number of items
1 Bulk Pack
15 EAC
1 Box
3 EAC
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
CABLE GLAND SHIELDED LONG LONG METAL 19-28MM CABLE OD 40MM THREAD
FEATURES: • Unique camera shutter principle which protects the cable. Fully insulated plastic insert with neoprene seal for fluid tightness • Large cable range with each gland - superior strain relief • Nickel plated brass for corrosion protection with IP68 rating • Locknut sold separately
FEATURES: • Unique camera shutter principle which protects the cable. Fully insulated plastic insert with neoprene seal for fluid tightness • Large cable range with each gland - superior strain relief • Nickel plated brass for corrosion protection with IP68 rating • Locknut sold separately
Not the product you were looking for? Check out other items in the Cable gland
Technical Specifications
Technical Specifications
Does this product not have all the features you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Cable gland |
|
| Thread type |
M40
|
|---|---|
| Nominal thread size metric/PG |
40
|
| Thread length |
13
|
| Wrench width |
43
|
| Material |
Brass (Nickel plated)
|
| Glass-fibre reinforced |
No
|
| Degree of protection (IP) |
IP68
|
| Colour |
Metallic
|
|---|---|
| With locknut |
No
|
| Type of sealing |
Camera Shutter
|
| Separable screw gland |
Yes
|
| Cable strain relief |
Yes
|
| Suitable for thread type cable screw gland |
Metric
|
| Surface finishing |
Nickel-plated
|
